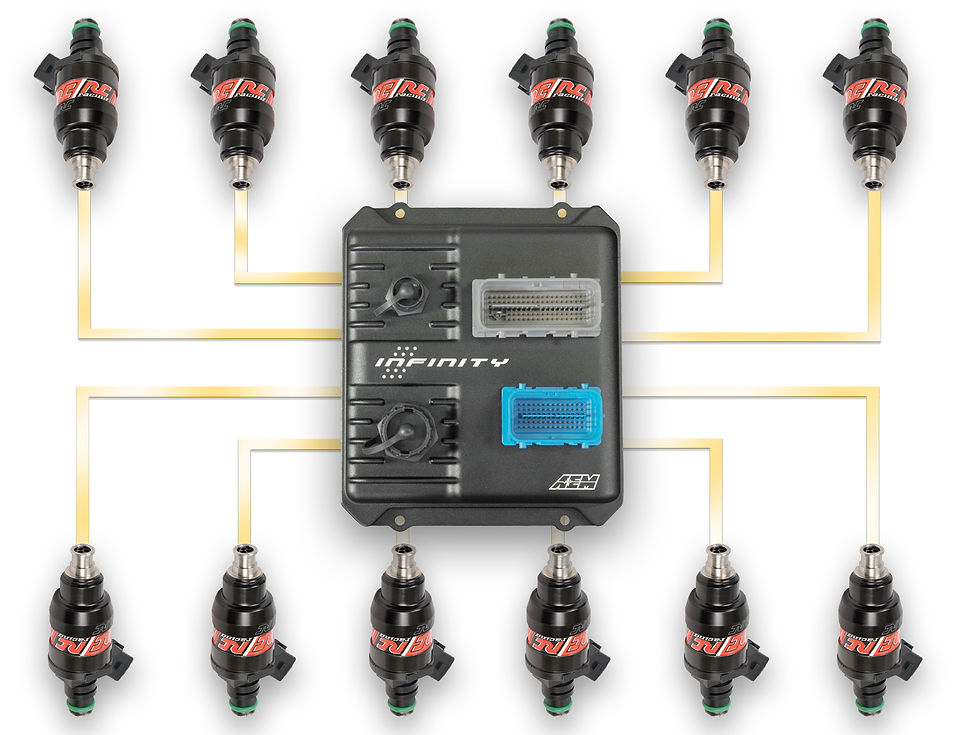

Infinity Standalone ECU

Infinity Standalone ECU

The Infinity ECU delivers state-of-the-art electronic fuel injection (EFI) control capabilities typically found only at upper echelons of Motorsports. Through the Infinity ECU, AEM makes this technology affordable for both professional race teams and amateur racers. The Infinity ECU is built around a latest-generation 32 bit floating point 200MHz automotive processor and Real Time Operating System (RTOS), which is capable of processing 400 MIPS (millions of instructions per second). This allows the Infinity to do more, faster, in a more stable programming environment.

•Infinity-6 features 6 high/low imp injectors, 6 coils, 2 VVTi and 1 dbw
•Infinity-8h features 8 high imp injectors, 8 coils, 2 VVTi and 1 dbw
•Infinity-8 features 8 high/low imp injectors, 8 coils, 4 VVTi and 2 dbw
•Infinity-10 features 10 high/low imp injectors, 10 coils, 4 VVTi and 2 dbw
•Infinity-812 features 12 high/low imp injectors, 8 coils, 4 VVTi and 2 dbw
  • Details

    Infinity’s airflow model based systems greatly reduce the amount of time it takes to set up and tune an engine by eliminating many of the lookup and trim tables (correction tables) necessary in previous generation ECUs. The Infinity’s airflow based, or volumetric efficiency (VE) based models calculate an engine’s requirements in real time based on an advanced algorithm that has various modes for calculating air flow. Once the user inputs an engine’s basic parameters (displacement, cylinders, ignition type, and firing order) and methods of calculation for airflow and ignition they can begin setting the engine’s VE table in the software.

    InfinityTuner is optimized for speed and performance. The software has the power to control a multitude of features found in today’s modern racecars, and features an advanced tuning Wizard to reduce set up time. An ECU Setup Wizard takes complex calibration setup work and simplifies it through a smart interface that features tabs for quick set up of vital engine functions. (SHOW IMAGE OF WIZARD). Each tab includes a description of the function.

    InfinityTuner software is highly flexible. It allows you to choose from multiple strategies for boost control, idle control, traction control, charge air temp blend, launch control and more.

    All controls in the Infinity ECU are synched to logged data which allows users to edit calibration data during log playback to minimize tuning time. AEMdata, AEM’s advanced data logging analysis software is also included for reviewing data logs.

    The Infinity ECU calculates injector pulsewidth in units of 1/10th of a microsecond (0.0000001 second). Individual cylinder fuel trim is included and user adjustable.
